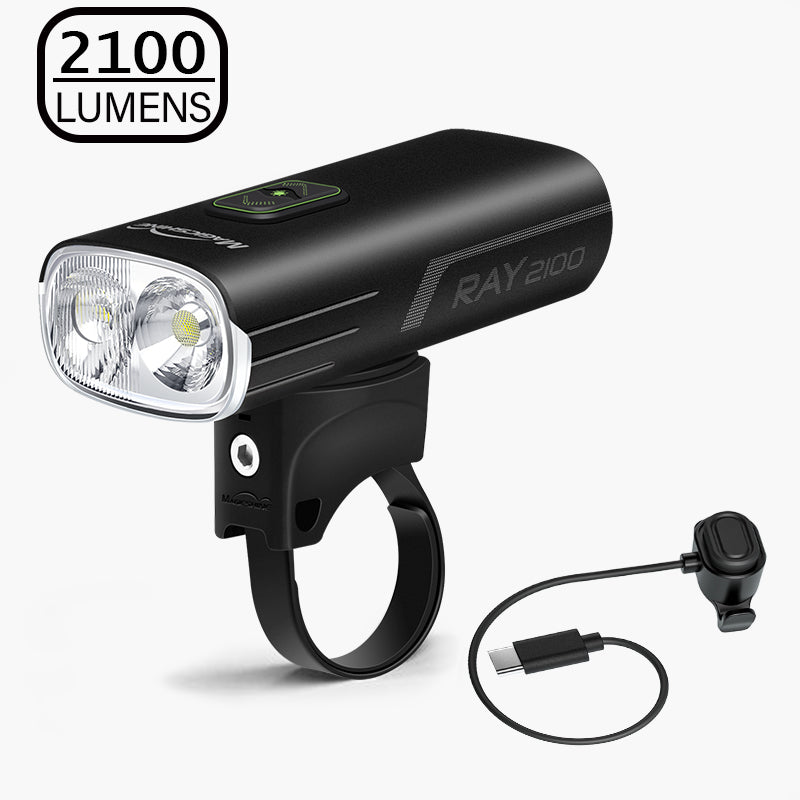

Magicshine Front Light | Ray 2100 + Remote Combo

The Magicshine Ray 2100+Remote Combo is a powerful and reliable bike light. With its two Luminus SST-40 LED chips, the 2100 LM front light has a max throw of up to 152 meters and a runtime of up to 27 hours. The 27° angle also ensures a wide and even beam for maximum visibility.

*For first-time usage, please press the button for 5s to unlock the light.

*Do remember to lock the light by pressing the button for 5s when not using.

Features at a Glance:

• Max Lumen: 2100 LM
• Max Throw: 152 m
• Max Runtime: 27 hrs
• Battery Capacity: 3.6V 6700mAh
• Brightness Sensor: Support
• Vibration Sensor: Support
• Remote Option: Support
• Waterproof: IPX6

Light up Your World
Two super bright and power-efficient LEDs produce a maximum verified output of 2,100 lumens. The beam spreads wide and extends well into the distance.

Spotlight & Floodlight Combined
The perfect blend of a far-reaching spotlight and a widespread flood light gives you optimized illumination within your field of vision.

Smart Mode-Light Sensor
Output is locked at 40 lumens for be-seen visibility when the environment is well-lit. After sunset or when entering a tunnel, the output switches to full for active illumination.

Smart Mode-Vibration Sensor
The integrated vibration sensor detects the end of a ride and automatically turns off the light after 3 minutes of inaction. Further movement will turn the light back on.

Up-Down Buttons
Control brightness with up and down buttons instead of sequencing through all modes.

On The Handlebar
Place a micro remote right next to your thumb. Quick and easy mode changes without taking your hands off the grips.

Endurance To Match
Max possible runtime of 27 hours, made possible by 2x Lithium-ion power batteries with a capacity of 6700mAh.

Smart Battery Indicator
Easy to read battery indicator. The memory function saves the last selected mode.

Convenient Mounting Mechanism
Compatible with all Garmin quarter lock style handlebar/helmet/out-front mounts.

More Than A Bicycle Light
Charge your mobile devices via the USB Type-C fast charging port. When used as a power bank the input protocol of the device is matched automatically.

The Seamless Aluminum Housing
Thermal properties of the aluminium alloy housing are utilized to its max potential with RAY 2600, the max output level is maintained throughout. One piece seamless design also makes possible IPX6 waterproof rating and a smooth, aerodynamic profile.

Technical Specifications

• Specifications Parameter
• Max Lumen 2100 LM
• LED 2*Luminus SST-40
• Beam Angle 27°/27°
• Max Throw 152 m
• Runtime 1.6-27 hrs
• Brightness Sensor Support
• Vibration Sensor Support
• Remote Option Support
• Beam Intensity 5800 CD
• Waterproof Rate IPX6
• Battery Capacity 3.6V 6700mAh
• Charger USB-C
• Charging Time 3hrs (5V/2A)
• Weight 190 g / 6.7 oz
• Dimensions 96*41*27 mm / 3.78*1.61*1.06 in
• Material Aluminum
• Mounting System Garmin style quarter turn mount.

LIGHT MODES

MODE	BRIGHTNESS	ECO	LOW	MID	HIGH
	LUMENS	125	250	500	1050
	h:min	27:06	13:28	04:54	02:33
	LUMENS	125	250	500	1050
	h:min	27:06	13:28	04:54	02:33
	LUMENS	250	500	1050	2100
	h: min	13:40	07:00	02:38	01:17
	LUMENS	250	250	/	/
	h: min	/	/	/	/

What's in The Box?

• RAY 2100 x 1
• Remote Control x 1
• Handlebar mount x 1
• Silicone strap x 4
• USB-C cable x 1
• 3mm hex x 1

SKU# RAY2100-COMBO_2K-3KLM
