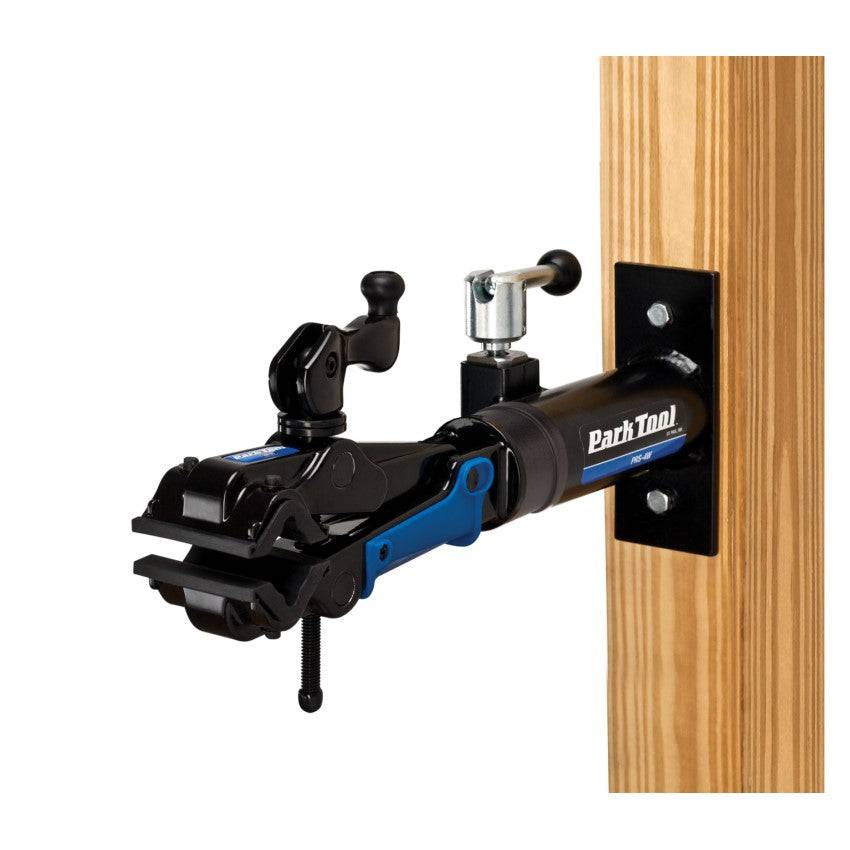

Parktool Deluxe Wall Mount Repair Stand with 100-3D clamp

Designed to be easily mounted to any post or wall stud, the PRS-4W-2 is a shop-quality stand using the 100-3D Micro-Adjustable clamp which can accommodate bicycle frame tubes up to 3".

PRS-4W-2 Features

• The 100-3D Micro-Adjust clamp grips nearly any tube from 7/8" to 3" (23mm to 76mm), including aero tubes
• Cam-actuated adjustment system for quick entry, adjustment, and exit
• Fully adjustable clamping pressure prevents damage to thin-walled tubes

• Narrow clamping jaws (2.7"/7cm) designed to clamp securely yet fit into tight areas or on short seat posts
• Durable replaceable clamp covers (#1960)
• Wall mount extends 5-1/2" (14cm) from the mounting surface, with the center of clamp 13" (33cm) from a mounting surface when installed
• Wall mounting plate is 6 inches by 2.5 inches (approx. 15cm x 6cm).
• Mounting holes are an approximately one-half inch in diameter and are on 4-inch centers (100.2mm).
• Mounting bolts are not included.

Weight Limit: The PRS-4W-1 and PRS-4W-2 Deluxe Wall-Mount Repair Stands have a 100 lb. (45kg) weight limit, provided the stand is securely mounted with appropriate fasteners to a solid wall stud, post, or beam. The user is responsible for making sure the mounting surface and the fasteners are capable of handling this amount of weight.

SKU# PT-PRS-4W-2
