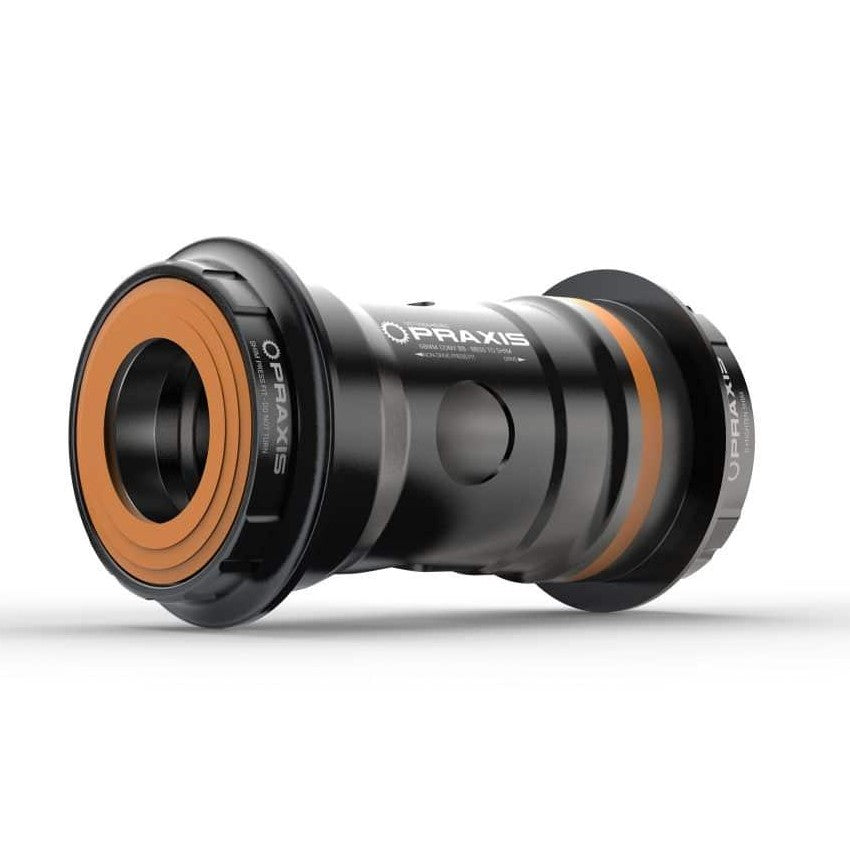

Shimano BB30/PF30 Road
Our Shimano BB30/PF30 68mm Road BB. It is compatible with Shimano™ Hollowtech II cranks. High-grade Enduro 2437 steel bearings are fully sealed and are a fantastic replacement BB for your Shimano™ drivetrain.
Specifications
- Product: Shimano BB30/PF30 Road BB, for use only with Shimano™ Hollowtech II Road cranks in a BB30/PF30 68mm road frame
- Tool:
- This Shimano BB30/PF30 BB requires TWO 16-notch traditional BB tools along with a press tool/drift for installation.
- Use any standard outboard cup BB tool with 16 external notches and a 44mm ID
- Buy This If: You are installing a Shimano™ Hollowtech II Road crank into a 68mm width BB30 or PF30 road frame.
- Measurement
- BB30 - 68mm Width Road x 42mm Diameter
- PF30 - 68mm Width Road x 46mm Diameter (Included Sleeve for PF30)
- Bearings
- Cartridge Steel or Ceramic | Enduro 2437
- These are specifically made for use with Shimano Hollowtech II crank spindles.
- The ceramic version is Grade 5 / ABEC 5 rating
- 24mm Drive and a 24mm NonDrive Bearing
- MFG: Forged & machined heat-treated alloy cups
- Avg. Weight: 130g
- Note
- Praxis Collet Design
- Made precisely to Shimano Road bearing stance spec.
- This 68mm BB Cannot be used for MTN Cranks
- This BB IS NOT compatible with the proprietary Cannondale "BB30a" or "PF30a" frames.
- Frame shell cannot have any inner shell obstructions (like cable guides/screws) that prevent BB from installing.
SKU#
- PXS-68-3001R ROAD 68mm BB30/PF30 SHIMANO
- PXS-68-5001R ROAD 68mm BB30/PF30 SHIMANO CERAMIC
