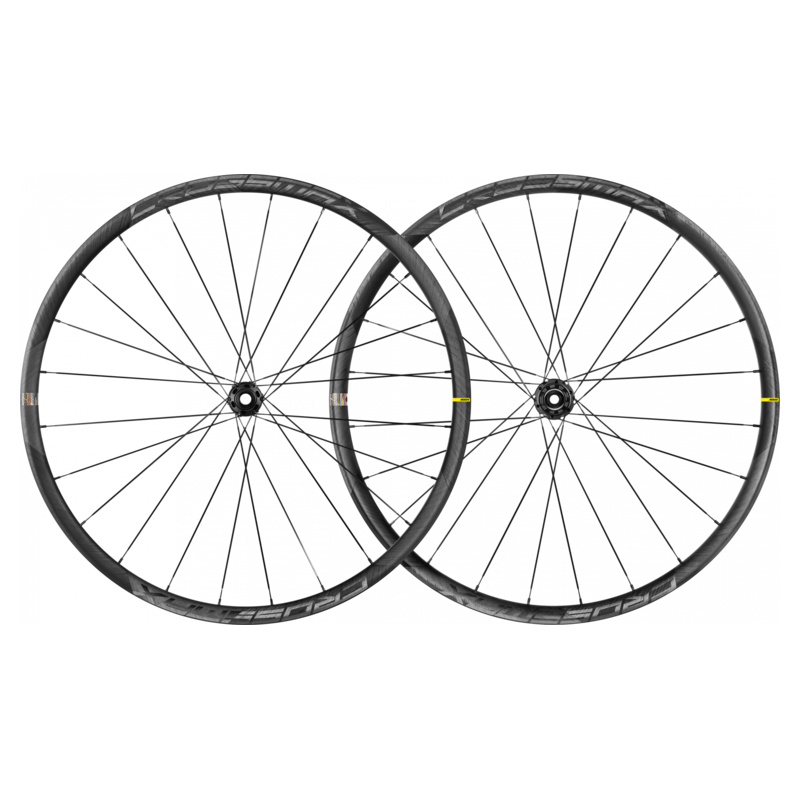

Mavic Carbon MTB Wheelset | Crossmax SL Ultimate 25 29", Tubeless Ready, 6-Bolts or Centerlock Disc Brake, Thru-Axle and QR

CROSSMAX SL ULTIMATE 25 29"
Built for Olympic athletes, the new Crossmax SL Ultimate is the most dynamic XC wheelset ever created by Mavic. Lighter, stiffer, faster - it’s all about going for gold.

• Weight: 1340 grams (Pair 29")
• Weight: 605 grams (Front 29")
• Weight: 735 grams (Rear 29")

At only 1340 grams, this is the wheel that performance-obsessed cross-country racers dream of. Developed with input from top pro racers seeking a competitive advantage at World Cups and Olympics, it features an ultralight full carbon 29” rim (340g) for fast acceleration and climbing without compromising stiffness and durability.

Adaptive layup, a specific carbon layup technology enabled us to handcraft these carbon rims with less material between the spokes. The spoke holes are reinforced with strategically positioned carbon layering in a process that minimizes weight without compromising stiffness and strength. A lighter rim means faster acceleration, more efficient climbing, and a more responsive feel on the trail. The external carbon layer features our new UD² construction for a distinctive look and added durability.

Extensive field testing with our pro athletes determined that a 25mm inner width was ideal for quick, precise ride quality and optimized tire grip on fast racetracks. For more technical trails, some preferred a 30mm width for added control, so we created two options. It’s your choice, and you can mix the two if you want. You could choose the Crossmax Ultimate 25 for the rear to boost acceleration and efficiency, and the Crossmax Ultimate 30 for the front to add confidence and control on rugged single-track.

The carbon rim is laced with 24 straight-pull double-butted spokes (same spoke length throughout), two-crossed for maximum power transfer and enhanced vertical compliance. The new lighter Infinity hub design optimizes lateral stiffness, and the spoke lacing maximizes power transfer. Our Instant Drive 360 freewheel with a double ratchet system provides fast engagement and high stiffness to help you accelerate out of corners faster. The rear hub is compatible with Shimano HG9, Micro Spline, and SRAM XD driver bodies.

The Crossmax SL Ultimate 25 is available with 6-bolt or center lock brake rotors in 29” only and is compatible with a 15x110 front axle and 12x148 rear. It comes with valves, spare spokes, and MTB wheel covers.

SPECIFICATIONS

Rims

• Drilling: traditional
• Internal width: 25 mm
• ETRTO size 29": 622x25TSS
• Hookless profile
• Adaptive Layup Carbon technology
• UST Tubeless Ready

Spokes

• Material: steel
• Shape: straight pull, flat, double-butted
• Nipples: aluminum, ABS
• Count: 24 front and rear
• Lacing: front and rear crossed 2, contactless

Hubs

• Hub available with 6-bolt or Center Lock® brake rotors
• Axles: Front 15X110 Boost; Rear 12X148 Boost
• Infinity hubs
• Instant Drive 360 freewheel technology
• QRM Auto bearing preload technology

Versions

• Disc standard: 6 Bolts or Center Lock®
• Hub width: Boost only (front 110, rear 148)
• Freewheel: SRAM XD, Shimano HG9, Shimano Micro-Spline

Compatibility

• Rear-axle: 12x148 Boost thru-axle
• Front axle: 15x110 Boost thru-axle
• Compatible Adapters and freewheel bodies
• Boost: Torque Caps (LV2374400)
• ID360 Shimano HG9 alloy freewheel body (LV3780100)
• ID360 Shimano Micro Spline alloy freewheel body (LV3990100)
• ID360 Sram XD freewheel body (LV3740100)

Intended use

• ASTM CATEGORY 3: CROSS COUNTRY
• For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesn't exceed 150kg, bike included
• Recommended tire sizes: 50mm to 76mm (2.0" to 3.0")

Delivered with

• UST valve and accessories
• Multifonction adjustment wrench (delivered with rear wheel)
• Wheel bag
• 2 replacement spokes with each wheel

KEY TECHNOLOGIES

Adaptive Layup Carbon technology
Lighter carbon rim construction for faster acceleration and more efficient climbing.The Ultimate CrossCountry racing application: light and responsive.

Instant Drive 360 Freewheel Technology
The new Instant Drive 360 freewheel system is super light and efficient. A large contactless rubber seal provides low friction, while a wide array of end caps makes it super versatile.

QRM Auto bearing preload Technology
Qualité de Roulements Mavic Auto Our latest innovation. Those cartridge bearings are of course double sealed with C3 internal clearance. Their preload is automatically adjusted to guarantee a perfect spin with no play in the long run.
